The Idea

Why I implement this application.

Traditional way to connect to SSH server

coldnew@gentoo ~ $ ssh coldnew@192.168.20.100
The authenticity of host '192.168.20.100 (192.168.20.100)' can't be established.
ECDSA key fingerprint is SHA256:izC+HeDEm/u1FcCzpM+aBgpbuGlrGD1HkMnwLVkS+ac.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.20.100' (ECDSA) to the list of known hosts.
Password:

Connect to SSH server without password

You can use ssh-copy-id to make ssh without password

coldnew@gentoo ~ $ ssh-copy-id ~/.ssh/id_rsa.pub coldnew@192.168.20.100
Password:

Now it's no need to type any password to login

coldnew@gentoo ~ $ ssh coldnew@192.168.20.100
Warning: Permanently added '192.168.20.100' (ECDSA) to the list of known hosts.
coldnew@pc ~ $

Use password vs without password

password
- Your server may not be secure
- Brute force attack
without password
- You need to setup key first to let user login
- System may be not easy to mantain but more secure

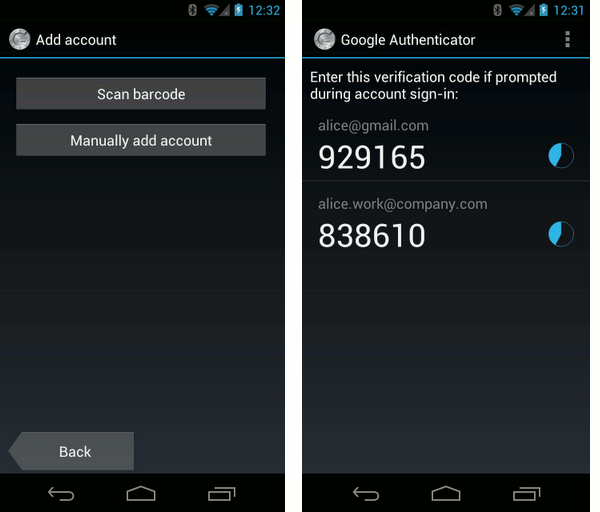

The Soultion: Google Authenticator

But…

What if we don't trust Google ?

Google said: Don't be evil

Eat you own dogfood

Here's what I have done

So…

Let's talk about telegram-authenticator

What's telegram ?

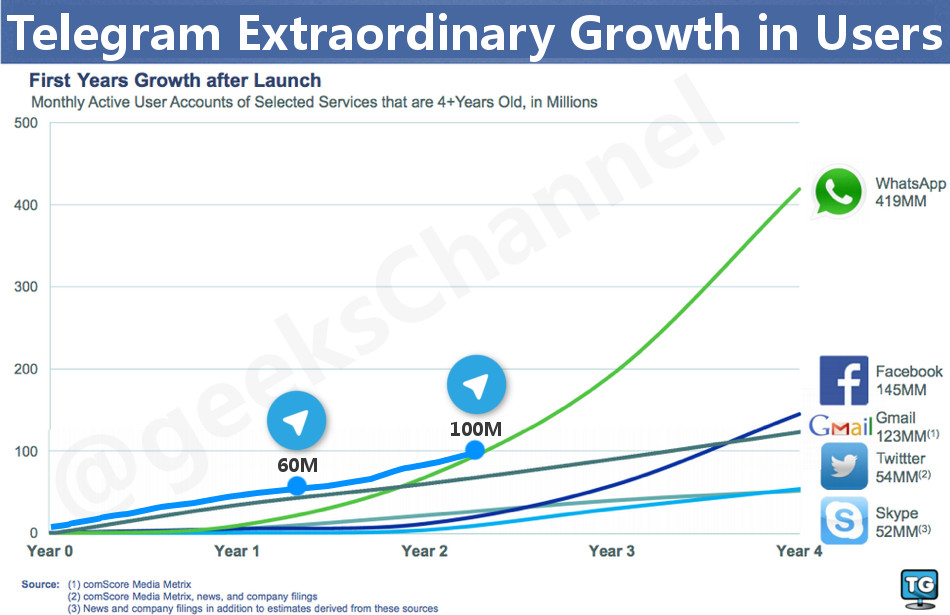

Is a brand new instant-messanger application
Client is open source, but server isn't

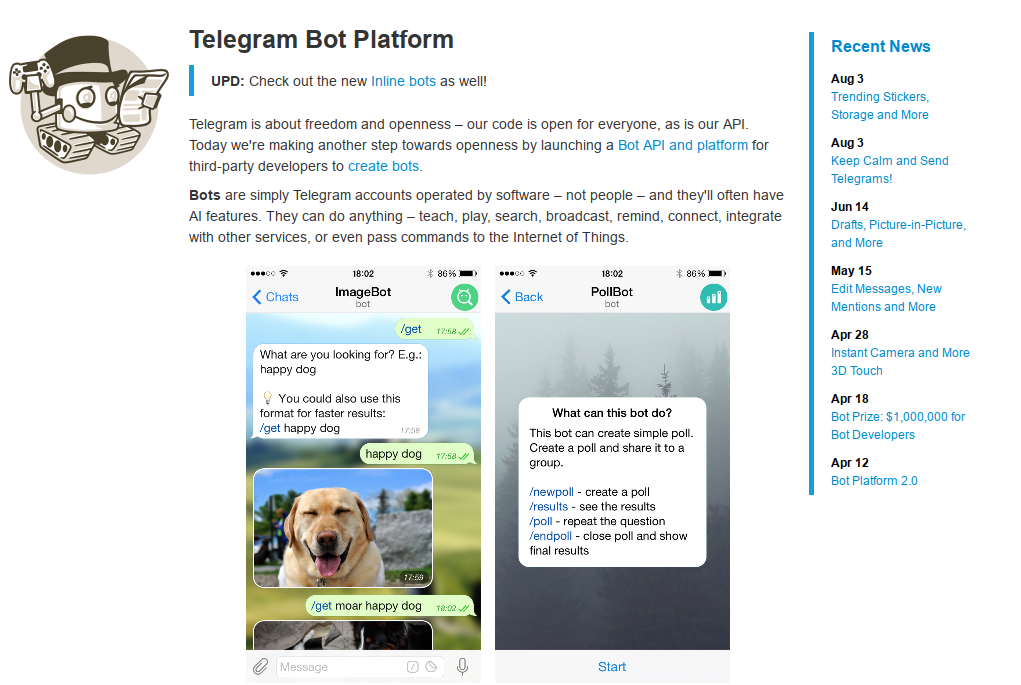

Telegram support BOT

How to create telegram bot ?

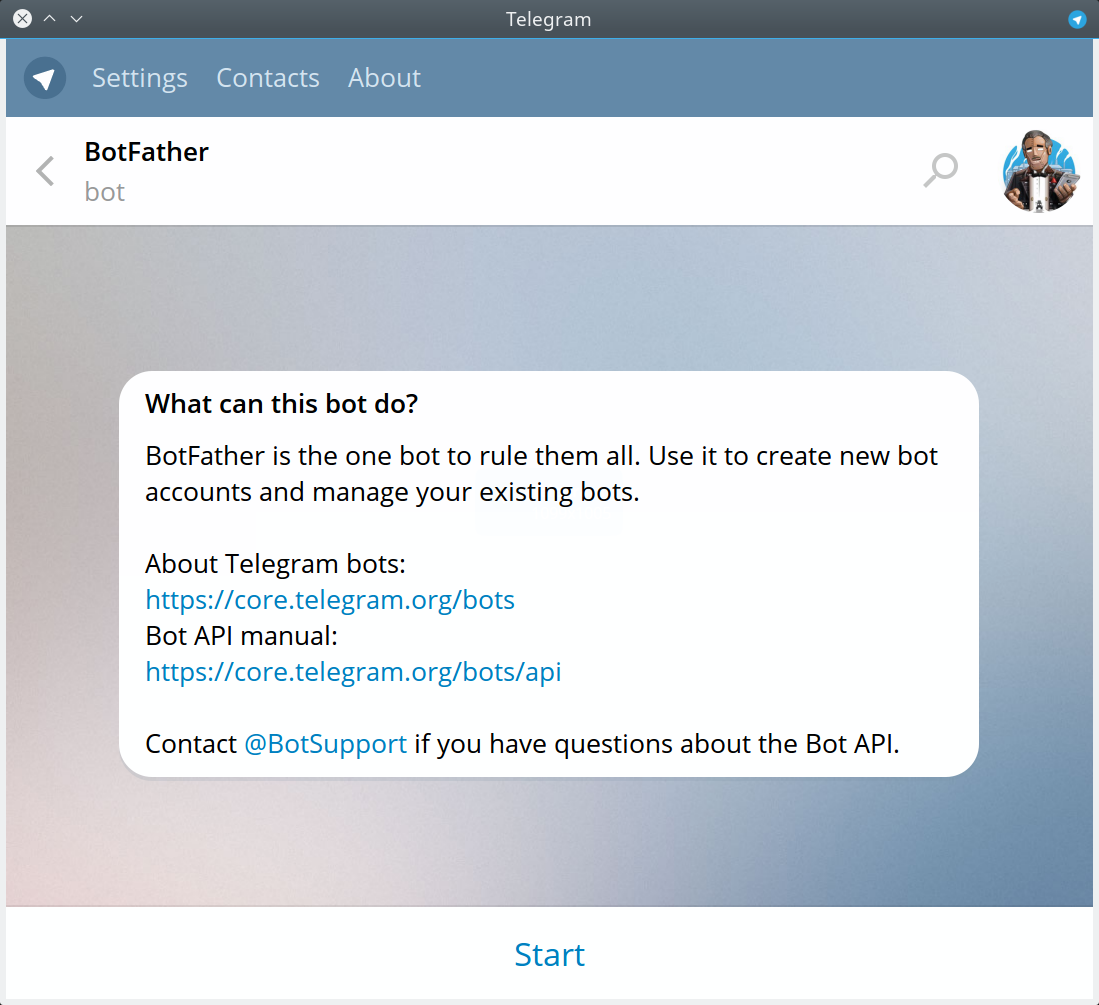

Add botfather to your channel

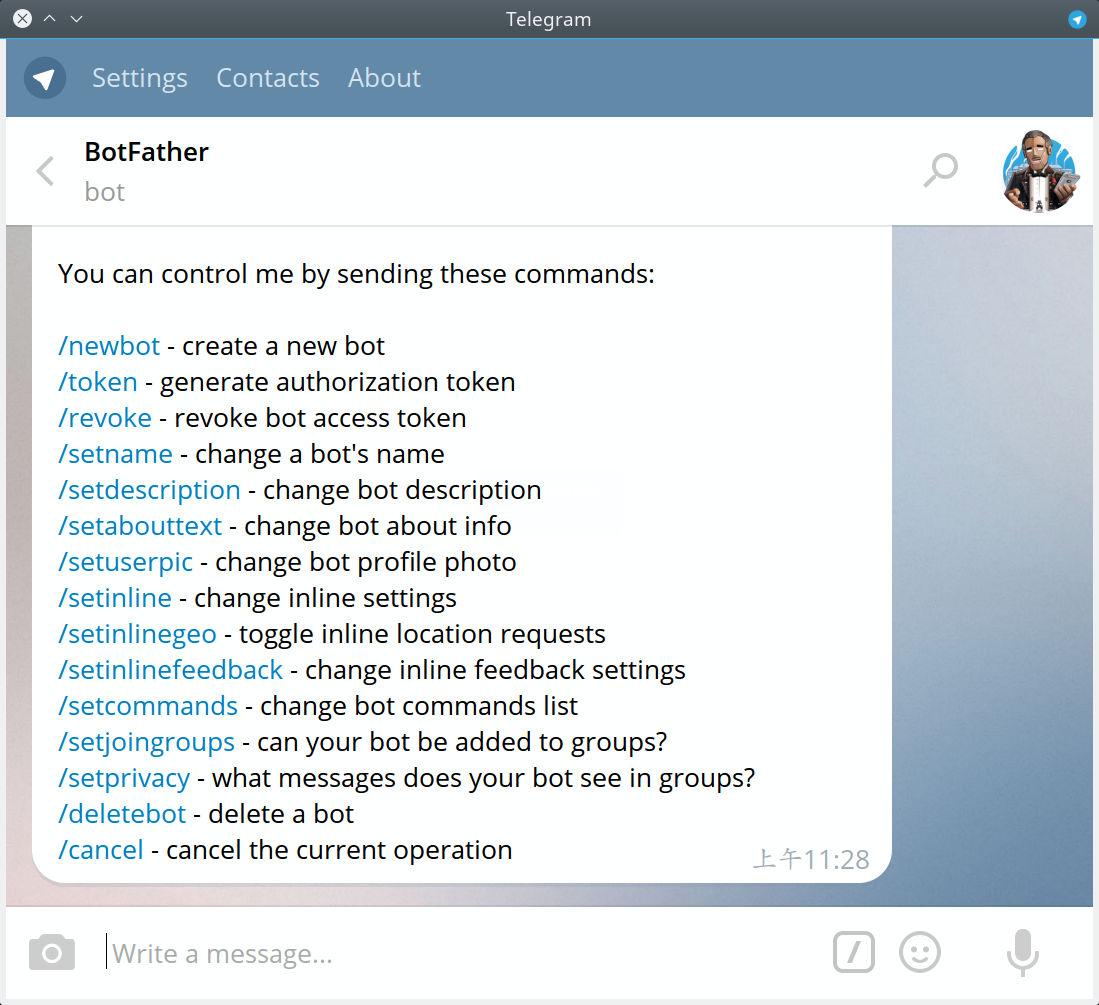

Use commands to control your own bot

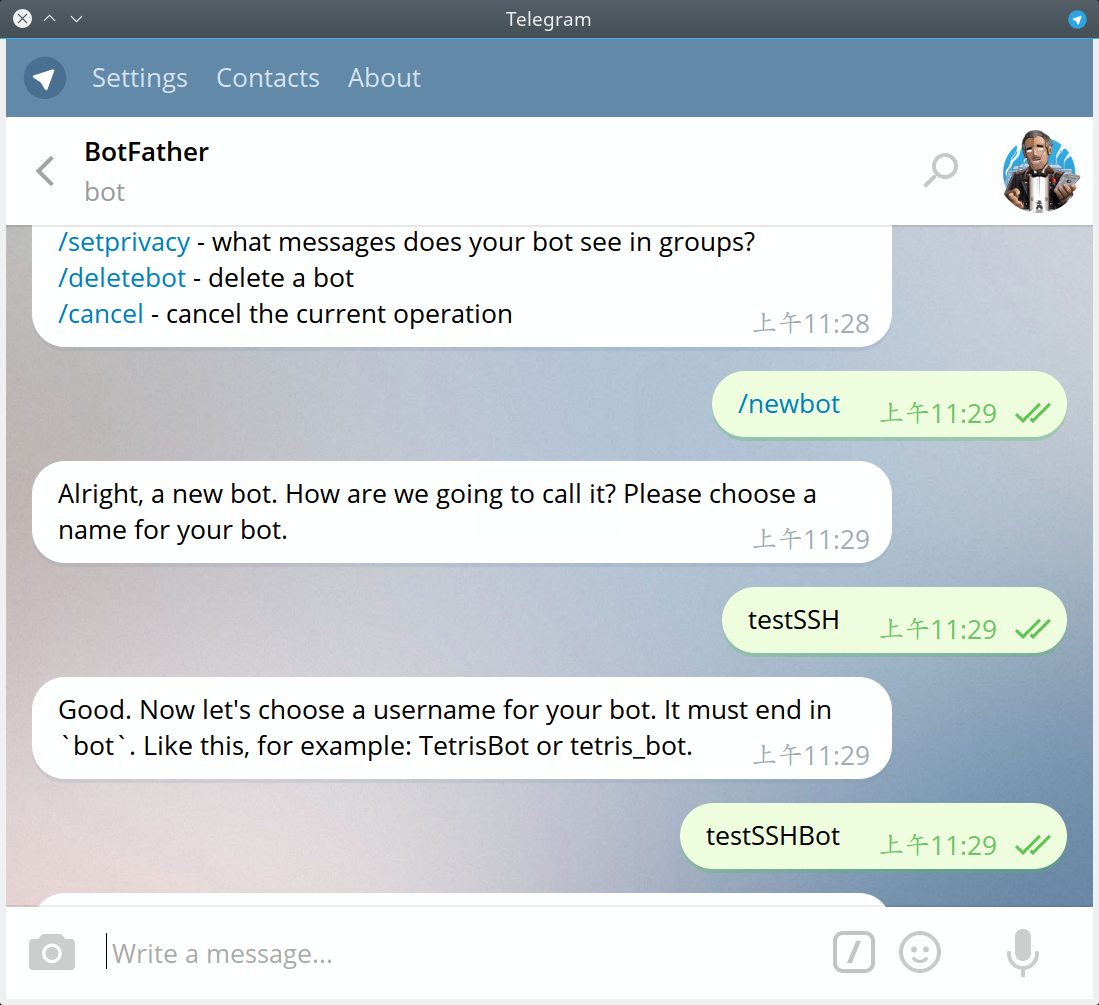

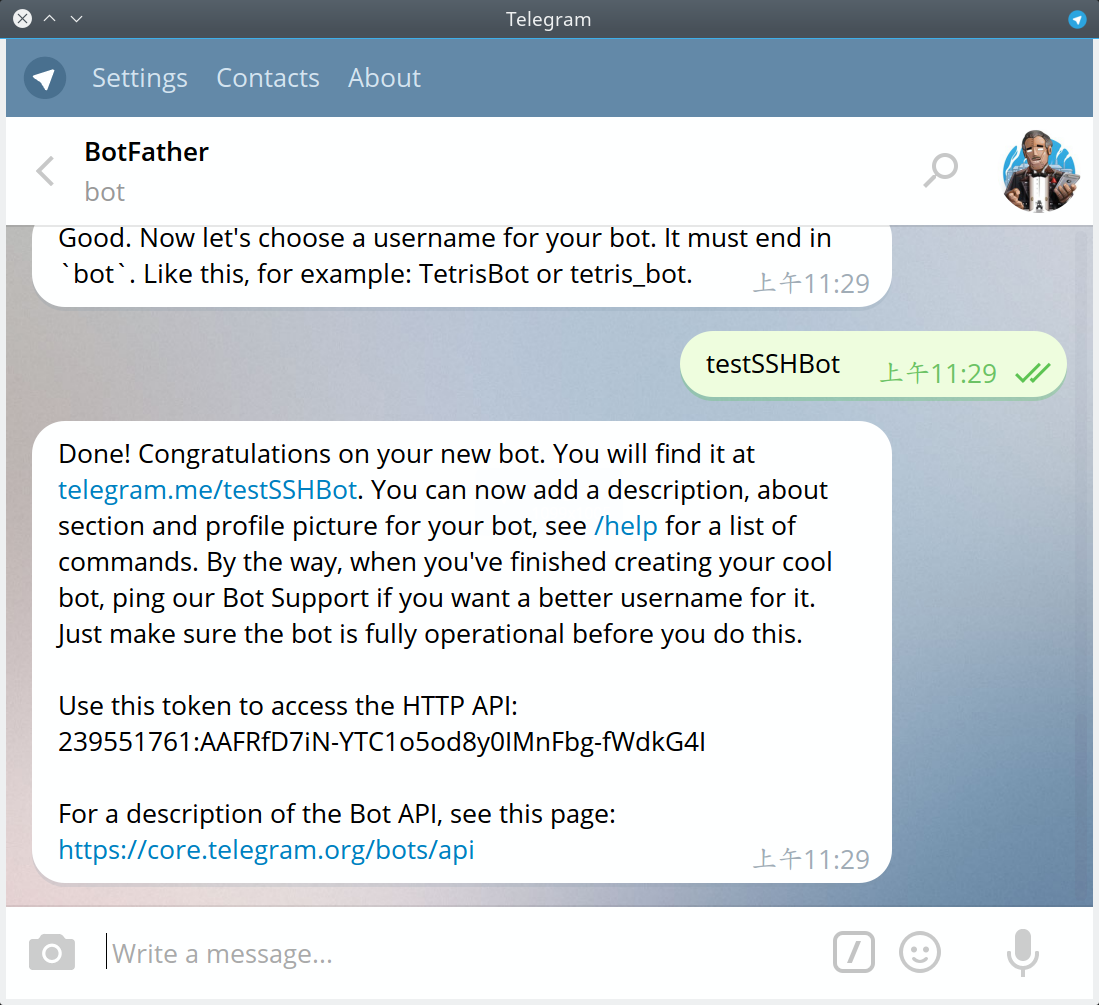

Create new bot

Now we know our bot token

239551761:AAFRfD7iN-YTC1o5od8y0IMnFbg-fWdkG4I

A simple guide on botAPI

And you'll know how to write a bot

Telegram's botAPI

All list in this page

https://core.telegram.org/bots/api
We only talk about how to fetch/send message here
Before this, add bot to your channel

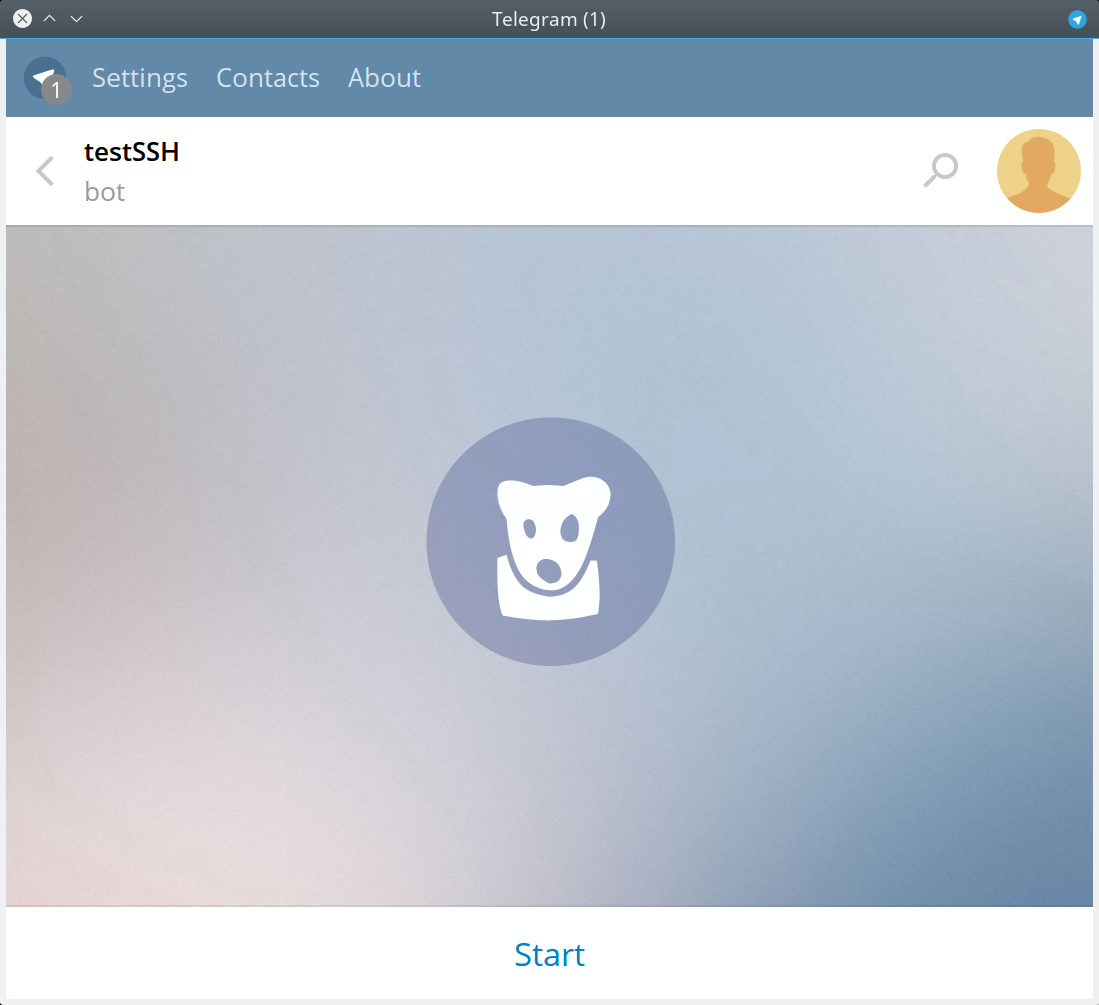

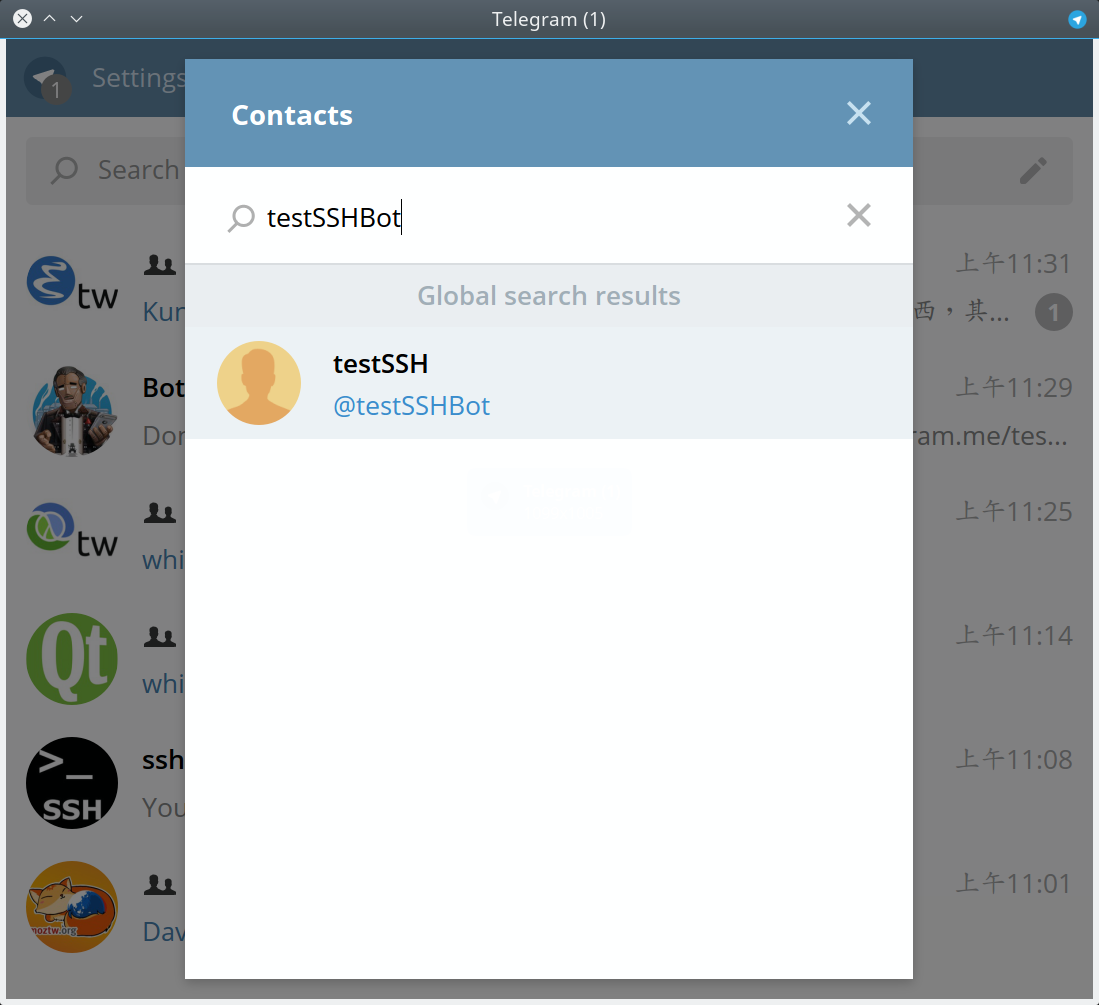

Add bot to channel

Getting updates

You cant get update from

https://api.telegram.org/bot${TOKEN}/getUpdates

So… our bot token is

239551761:AAFRfD7iN-YTC1o5od8y0IMnFbg-fWdkG4I

And the bot message can get from

https://api.telegram.org/bot239551761:AAFRfD7iN-YTC1o5od8y0IMnFbg-fWdkG4I/getUpdates

Here's what we get after you type something

{ "ok":true,
   "result":[ {
         "update_id":556578430,
         "message":{
            "message_id":2,
            "from":{
               "id":81660412,
               "first_name":"Yen-Chin",
               "last_name":"Lee",
               "username":"coldnew" },
            "chat":{
               "id":81660412,
               "first_name":"Yen-Chin",
               "last_name":"Lee",
               "username":"coldnew",
               "type":"private" },   "date":1473738006,  "text":"test" } }, ] }

The chat_id is the room id

chat_id: 8166042

{"update_id":556578430,
 "message":{
     "message_id":2,
     "from":{
         "id":81660412,
         "first_name":"Yen-Chin",
         "last_name":"Lee",
         "username":"coldnew" },
     "chat":{
         "id":81660412,
         "first_name":"Yen-Chin",
         "last_name":"Lee",
         "username":"coldnew",
         "type":"private" },   "date":1473738006,  "text":"test" } }

Send message to bot channel

Now you find the chat_id, you can send message to specific channel
Use following url to do it

https://api.telegram.org/bot${TOKEN}/sendMessage

So… in this example, we has this url

https://api.telegram.org/bot239551761:AAFRfD7iN-YTC1o5od8y0IMnFbg-fWdkG4I/sendMessage

You need to add parameter to specify chat_id and text

{"chat_id": "81660412",
 "text": "Hello telegram bot"}

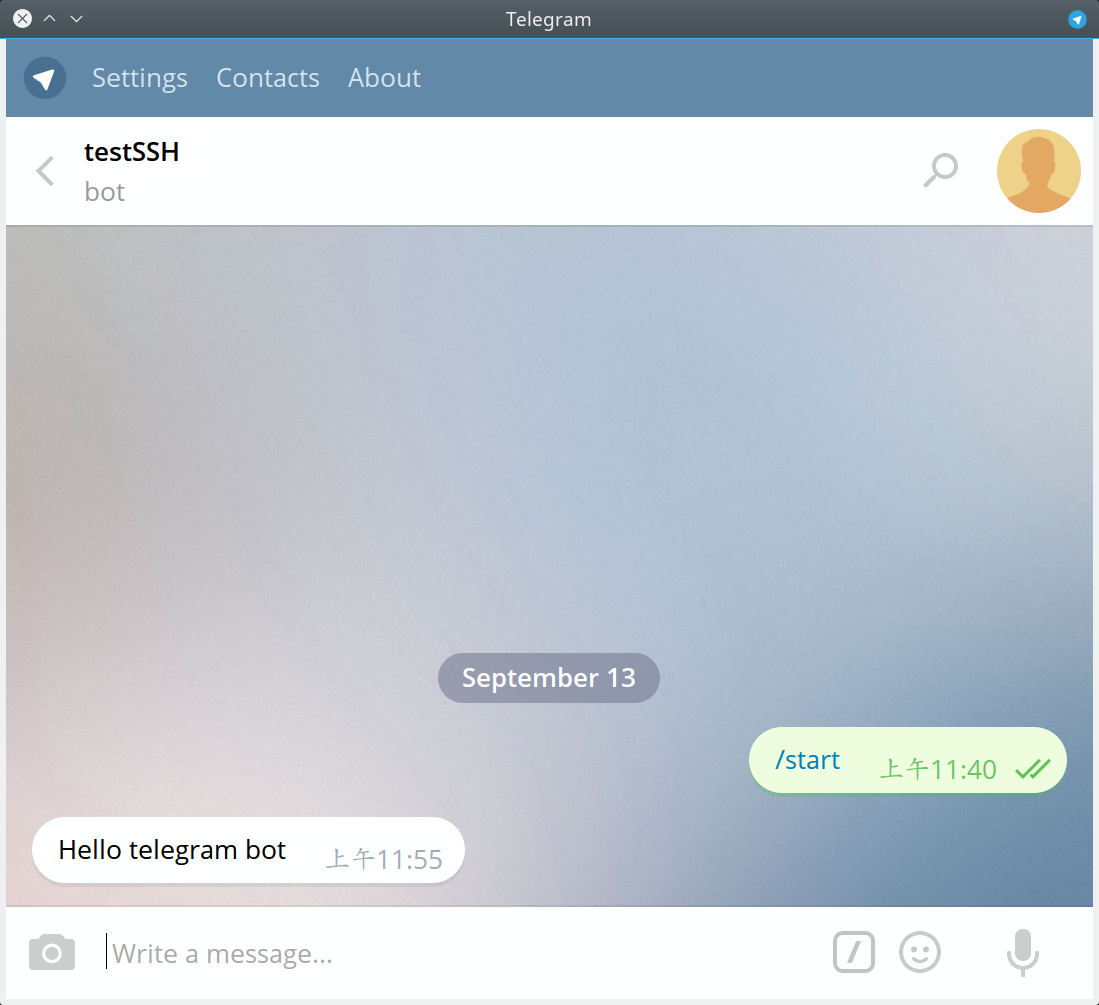

Let's try it with curl command

curl -s \
     -X POST \
     https://api.telegram.org/bot239551761:AAFRfD7iN-YTC1o5od8y0IMnFbg-fWdkG4I/sendMessage \
     -d text="Hello telegram bot" \
     -d chat_id=81660412

Writing pam_module

What's pam ?

PAM (Pluggable Authentication Modules)
Use for user authentication in any modern linux distribution
For more info on how to write pam_module, please see
- The Linux-PAM Module Writers' Guide

A simple hello world example

pam_hello.c

#include <stdio.h>
#include <stdlib.h>
#include <syslog.h>
#include <security/pam_modules.h>
#include <security/pam_ext.h>

PAM_EXTERN int pam_sm_authenticate(pam_handle_t* pamh, int flags, int argc,
                                   char const** argv) {
        pam_info(pamh, "Hello there!!");
        return PAM_IGNORE;
}

PAM_EXTERN int pam_sm_setcred(pam_handle_t* pamh, int flags, int argc,
                              char const** argv) {
        return PAM_SUCCESS;
}

Compile with

gcc pam_hello.c -fPIC -lpam -shared -o pam_hello.so

Move the pam_hello.so to it's place

In my system, it's /lib/security
```
sudo mv pam_hello.so /lib/security/
```
Modify /etc/pam.d/sshd
```
auth       required     pam_hello.so
```
Modify /etc/ssh/sshd_config
```
ChallengeResponseAuthentication yes
```

Now, let's test it

Remember to restart sshd first
```
sudo systemctl rstart sshd
```

Test ssh login

coldnew@pc ~ $ ssh coldnew@192.168.20.100
Password:
Hello there!!
coldnew@gentoo ~ $

The Project

telegram-authenticator

It's in alpha but almost worked

GitHub: https://github.com/coldnew/telegram-authenticator
Need to update the documentation
All codes write in C

How to use it

Installed it like what we installed pam_hello.so

Move the lib to /lib/security

sudo mv pam_telegram_authenticator.so /lib/security/

Modify /etc/pam.d/sshd

auth       required     pam_telegram_authenticator.so

Modify /etc/ssh/sshd_config
```
ChallengeResponseAuthentication yes
```

Use userspace application to save bot info

coldnew@gentoo ~ $ telegram-authenticator
Please enter your telegram bot token:
239551761:AAFRfD7iN-YTC1o5od8y0IMnFbg-fWdkG4I

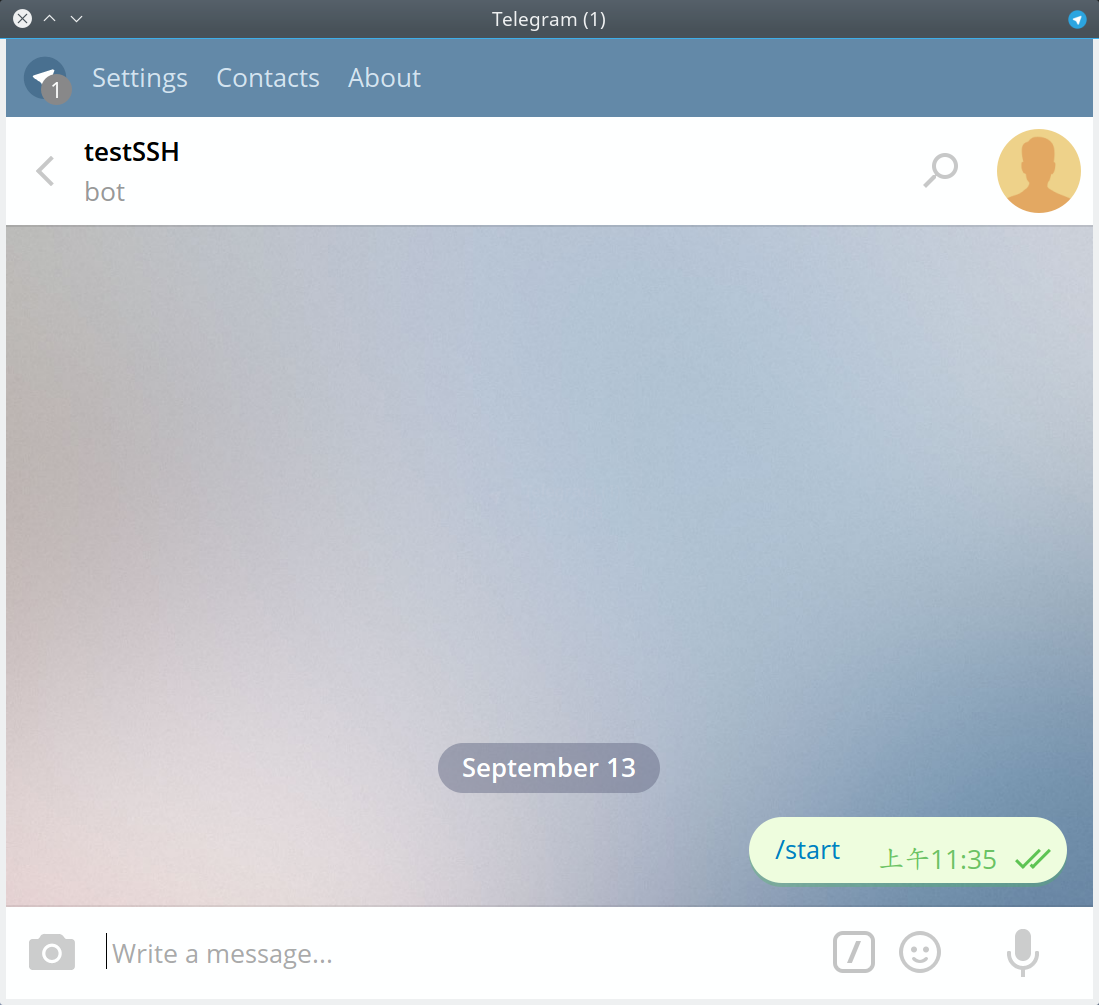

Please type '/start' to your telegram bot
Waiting for user type '/start' in telegram bot channel

Find chat_id: 81660412

Do you want to write setting to your config? (y/n) y

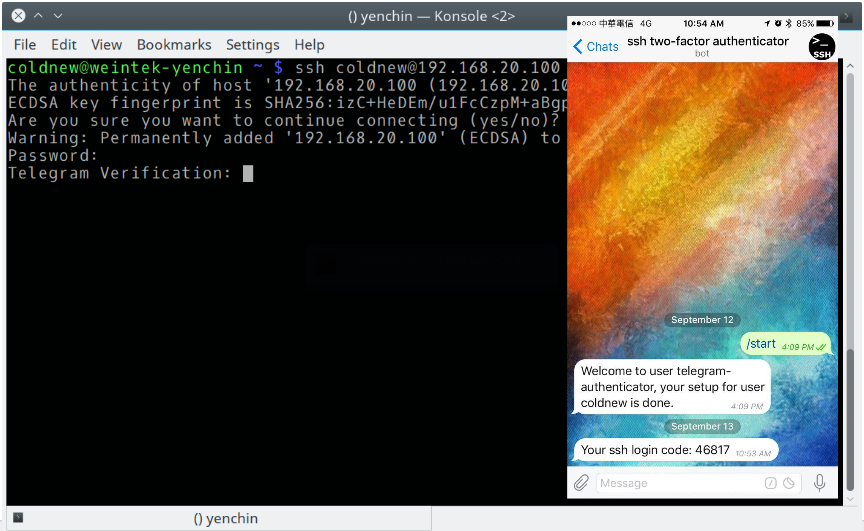

After your setup, this application will send info to telegram

And … you'll get this result

The missing part

A little guide on json-c

In this project, we use json-c

To parse json info
Mix with curl to send json info

How to use json-c

Our target

{ "ok":true,
  "result":[ { "update_id":556578430,
               "message":{ "message_id":2, "chat":{ "id":81660412 }  "text":"test" }}]}

Parse result

json_object *root = json_tokener_parse(DATA);
json_object *body;
json_object_object_get_ex(root, "result", &body);

// print it
printf("result: %s\n", json_object_to_json_string(body));

How to user json-c on array

{ "result":[ {"message":{ "message_id":2, "chat":{ "id":81660412 }  "text":"test" }}]}

json_object *root = json_tokener_parse(DATA);
json_object *body;
json_object_object_get_ex(root, "result", &body);
int arraylen = json_object_array_length(body);
json_object *jvalue;
for (int i = 0; i < arraylen; i++) {
        jvalue = json_object_array_get_idx(body, i);

        struct json_object *jchat;
        json_object_object_get_ex(jmessage, "chat", &jchat);

        struct json_object *jchat_id;
        json_object_object_get_ex(jchat, "id", &jchat_id);
}
